ROTO - QUALITY IS OUR SPECIALITY

Specifications

High-performance SDS plus drill bits designed for rapid impact drilling through reinforced concrete, brick, and stone using rotary hammer drills.

Key Features

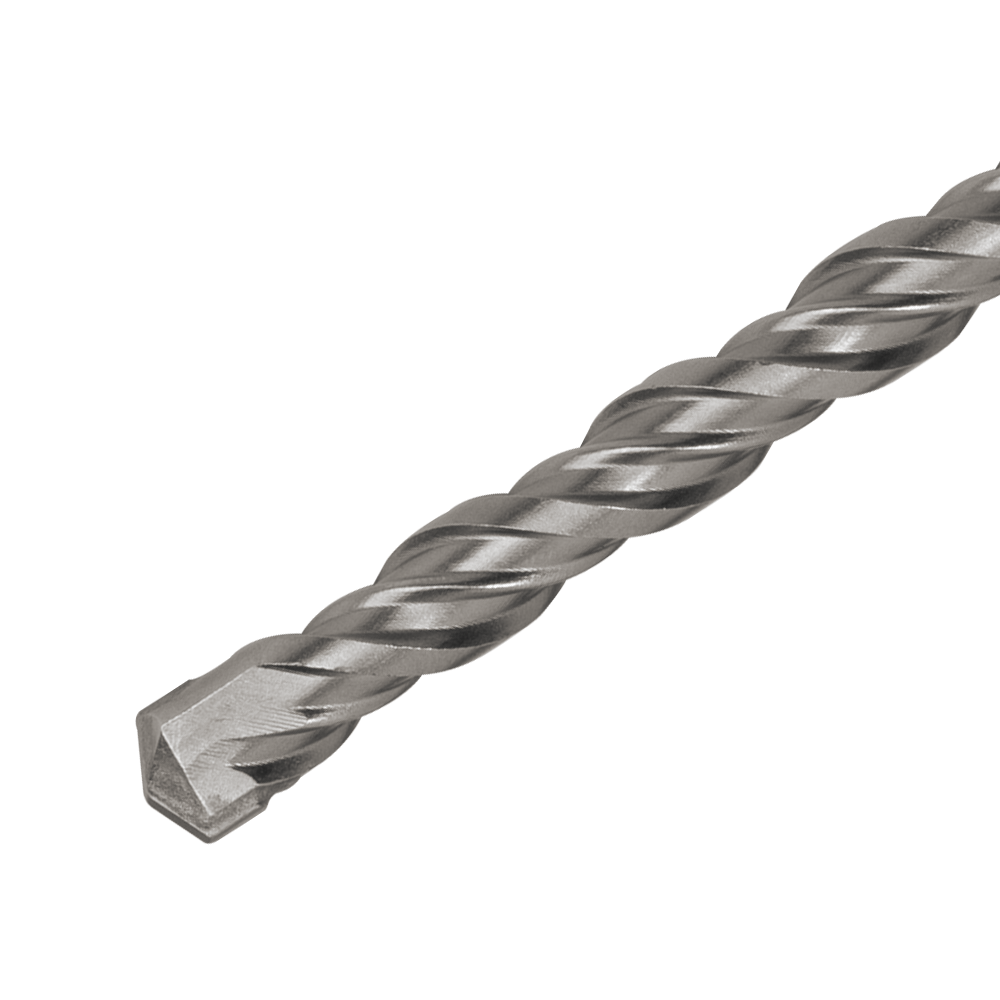

• Reinforced carbide tip provides extreme durability and impact resistance.
• Optimized flute geometry delivers high-speed dust removal and precision.
• Centering tip design prevents skating for accurate hole placement.

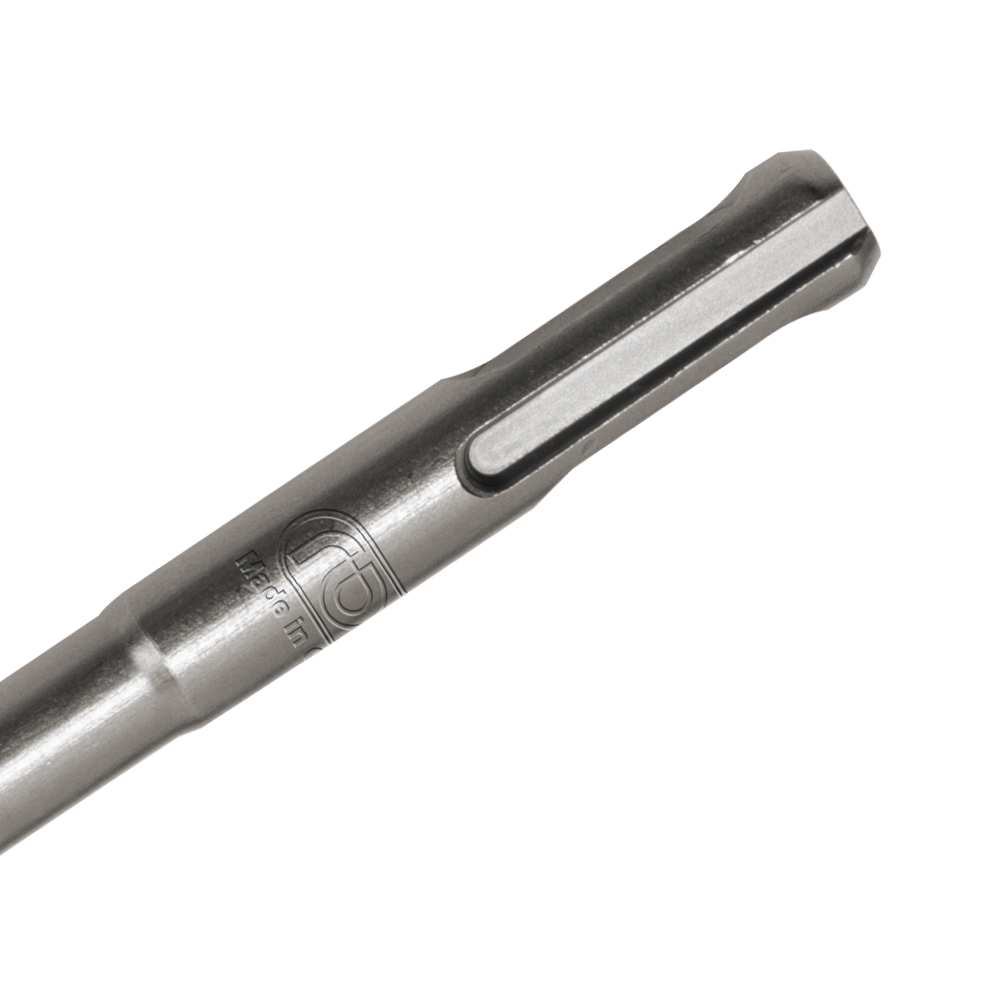

• Quick-change SDS Plus shank allows effortless, tool-free bit swaps.
• Universal fitment compatible with all standard SDS Plus hammers.

PART NO	DIAMETER	TOTAL LENGTH	WORKING LENGTH	PART NO	DIAMETER	TOTAL LENGTH	WORKING LENGTH
RT-31122	4 mm	110 mm	50 mm	RT-31199	8 mm	410 mm	350 mm
RT-31123	5 mm	110 mm	50 mm	RT-31201	10 mm	410 mm	350 mm
RT-31124	6 mm	110 mm	50 mm	RT-31203	12 mm	410 mm	350 mm
RT-31125	7 mm	110 mm	50 mm	RT-31205	14 mm	410 mm	350 mm
RT-31126	8 mm	110 mm	50 mm	RT-31207	16 mm	410 mm	350 mm
RT-31127	9 mm	110 mm	50 mm	RT-31208	18 mm	410 mm	350 mm
RT-31128	10 mm	110 mm	50 mm	RT-31209	20 mm	410 mm	350 mm
RT-31129	12 mm	110 mm	50 mm	RT-31210	22 mm	410 mm	350 mm
RT-31130	5 mm	160 mm	100 mm	RT-31211	24 mm	410 mm	350 mm
RT-31131	6 mm	160 mm	100 mm	RT-31212	25 mm	410 mm	350 mm
RT-31132	7 mm	160 mm	100 mm	RT-31213	26 mm	410 mm	350 mm
RT-31133	8 mm	160 mm	100 mm	RT-31214	28 mm	410 mm	350 mm
RT-31134	9 mm	160 mm	100 mm	RT-31215	30 mm	410 mm	350 mm
RT-31135	10 mm	160 mm	100 mm	RT-31216	32 mm	410 mm	350 mm
RT-31136	11 mm	160 mm	100 mm	RT-31217	34 mm	410 mm	350 mm
RT-31137	12 mm	160 mm	100 mm	RT-31218	35 mm	410 mm	350 mm
RT-31138	13 mm	160 mm	100 mm	RT-31219	36 mm	410 mm	350 mm
RT-31139	14 mm	160 mm	100 mm	RT-31220	38 mm	410 mm	350 mm
RT-31141	16 mm	160 mm	100 mm	RT-31222	10 mm	600 mm	540 mm
RT-31143	6 mm	210 mm	150 mm	RT-31223	12 mm	600 mm	540 mm
RT-31144	7 mm	210 mm	150 mm	RT-31224	14 mm	600 mm	540 mm
RT-31145	8 mm	210 mm	150 mm	RT-31225	16 mm	600 mm	540 mm
RT-31147	10 mm	210 mm	150 mm	RT-31226	18 mm	600 mm	540 mm
RT-31149	12 mm	210 mm	150 mm	RT-31227	20 mm	600 mm	540 mm
RT-31151	14 mm	210 mm	150 mm	RT-31228	22 mm	600 mm	540 mm
RT-31153	16 mm	210 mm	150 mm	RT-31229	24 mm	600 mm	540 mm
RT-31154	18 mm	210 mm	150 mm	RT-31230	25 mm	600 mm	540 mm
RT-31155	20 mm	210 mm	150 mm	RT-31231	26 mm	600 mm	540 mm
RT-31156	22 mm	210 mm	150 mm	RT-31232	28 mm	600 mm	540 mm
RT-31157	24 mm	210 mm	150 mm	RT-31233	30 mm	600 mm	540 mm
RT-31158	25 mm	210 mm	150 mm	RT-31234	32 mm	600 mm	540 mm
RT-31159	6 mm	260 mm	200 mm	RT-31235	34 mm	600 mm	540 mm
RT-31160	8 mm	260 mm	200 mm	RT-31236	35 mm	600 mm	540 mm
RT-31162	10 mm	260 mm	200 mm	RT-31237	36 mm	600 mm	540 mm
RT-31164	12 mm	260 mm	200 mm	RT-31238	38 mm	600 mm	540 mm
RT-31166	14 mm	260 mm	200 mm	RT-31239	40 mm	600 mm	540 mm
RT-31168	16 mm	260 mm	200 mm	RT-31240	10 mm	800 mm	740 mm
RT-31169	18 mm	260 mm	200 mm	RT-31241	12 mm	800 mm	740 mm
RT-31170	20 mm	260 mm	200 mm	RT-31242	14 mm	800 mm	740 mm
RT-31171	22 mm	260 mm	200 mm	RT-31243	16 mm	800 mm	740 mm
RT-31172	24 mm	260 mm	200 mm	RT-31244	18 mm	800 mm	740 mm
RT-31173	25 mm	260 mm	200 mm	RT-31245	20 mm	800 mm	740 mm
RT-31174	26 mm	260 mm	200 mm	RT-31246	22 mm	800 mm	740 mm
RT-31175	28 mm	260 mm	200 mm	RT-31247	24 mm	800 mm	740 mm
RT-31176	30 mm	260 mm	200 mm	RT-31248	25 mm	800 mm	740 mm
RT-31179	8 mm	310 mm	250 mm	RT-31249	26 mm	800 mm	740 mm
RT-31181	10 mm	310 mm	250 mm	RT-31250	28 mm	800 mm	740 mm
RT-31183	12 mm	310 mm	250 mm	RT-31251	30 mm	800 mm	740 mm
RT-31185	14 mm	310 mm	250 mm	RT-31252	32 mm	800 mm	740 mm
RT-31187	16 mm	310 mm	250 mm	RT-31253	34 mm	800 mm	740 mm
RT-31188	18 mm	310 mm	250 mm	RT-31254	35 mm	800 mm	740 mm
RT-31189	20 mm	310 mm	250 mm	RT-31255	36 mm	800 mm	740 mm
RT-31190	22 mm	310 mm	250 mm	RT-31256	38 mm	800 mm	740 mm
RT-31191	24 mm	310 mm	250 mm	RT-31257	40 mm	800 mm	740 mm
RT-31192	25 mm	310 mm	250 mm	RT-31258	10 mm	1000 mm	940 mm
RT-31193	26 mm	310 mm	250 mm	RT-31259	12 mm	1000 mm	940 mm
RT-31194	28 mm	310 mm	250 mm	RT-31260	14 mm	1000 mm	940 mm
RT-31195	30 mm	310 mm	250 mm	RT-31261	16 mm	1000 mm	940 mm
RT-31196	32 mm	310 mm	250 mm	RT-31262	18 mm	1000 mm	940 mm
RT-31197	34 mm	310 mm	250 mm	RT-31263	20 mm	1000 mm	940 mm
RT-31198	35 mm	310 mm	250 mm	RT-31264	22 mm	1000 mm	940 mm
				RT-31265	24 mm	1000 mm	940 mm
				RT-31266	25 mm	1000 mm	940 mm
				RT-31267	26 mm	1000 mm	940 mm
				RT-31268	28 mm	1000 mm	940 mm
				RT-31269	30 mm	1000 mm	940 mm
				RT-31270	32 mm	1000 mm	940 mm
				RT-31271	34 mm	1000 mm	940 mm
				RT-31272	35 mm	1000 mm	940 mm
				RT-31273	36 mm	1000 mm	940 mm
				RT-31274	38 mm	1000 mm	940 mm
				RT-31275	40 mm	1000 mm	940 mm
